Thermal Class-155
POLYURETHANE WIRE ENAMEL (Class-155)

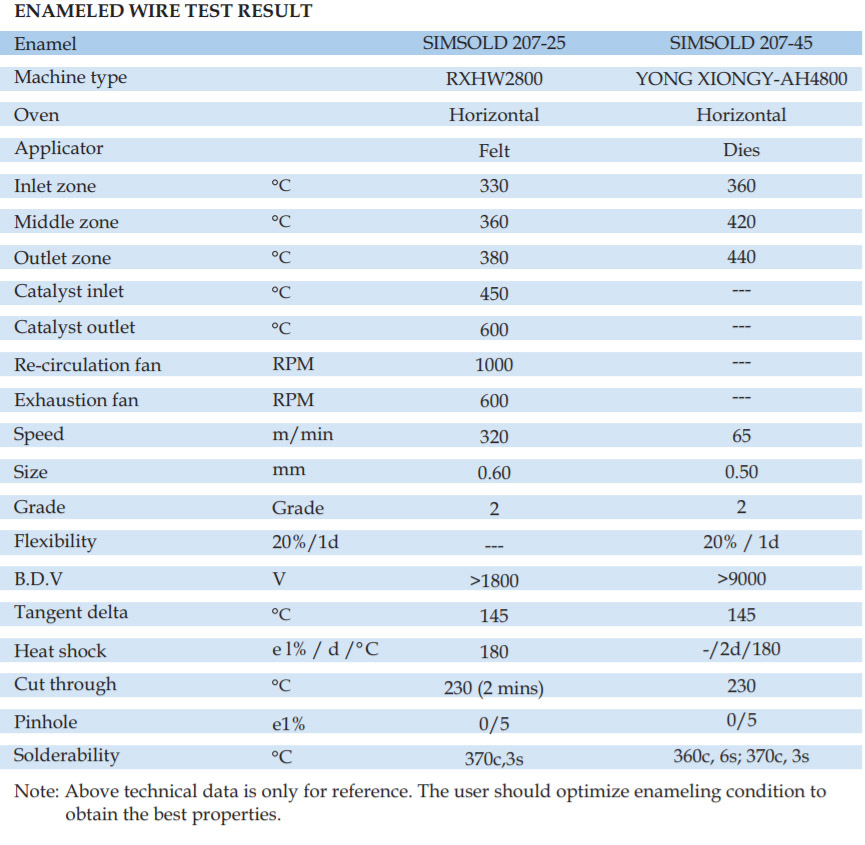

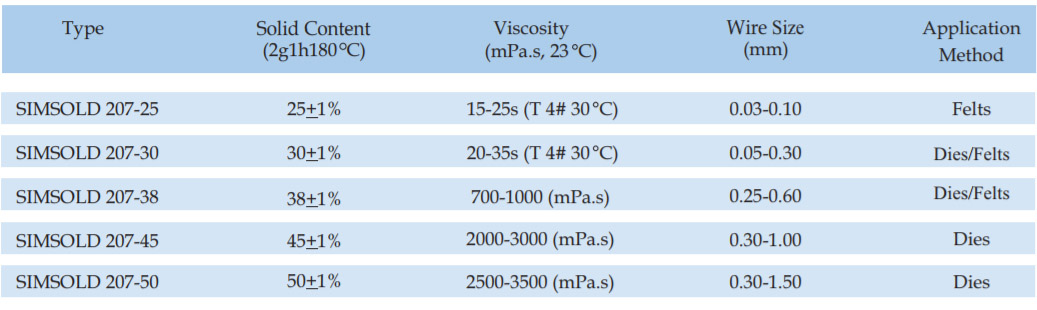

SIMSOLD-207 polyurethane high enamel speed specially designed for excellent performance on pinhole resistance test after elongation. It has less residue and very suitable for lead free solder. It may be available in red, yellow and green colors.
POLYURETHANE WIRE ENAMEL (Class-155)
SIMSOLD-207 polyurethane high enamel speed specially designed for excellent performance on pinhole resistance test after elongation. It has less residue and very suitable for lead free solder. It may be available in red, yellow and green colors.
Thermal Class-180
POLYURETHANE WIRE ENAMEL (Class-180)

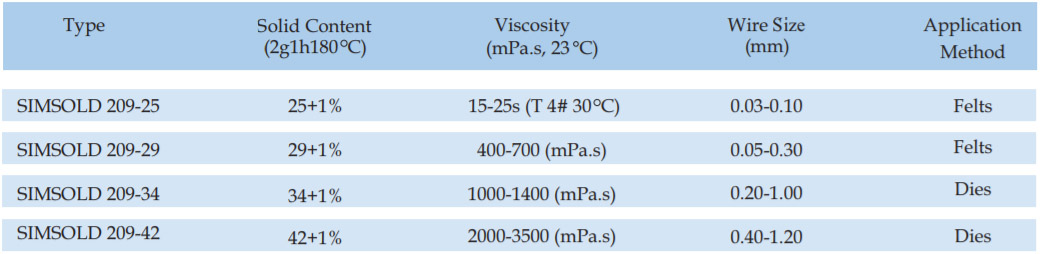

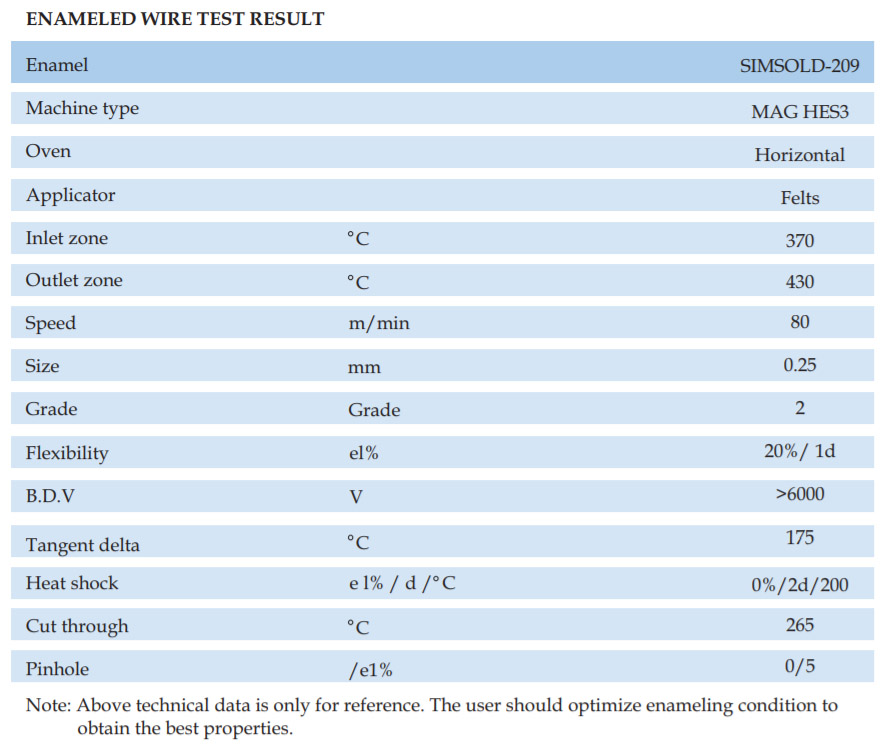

SIMSOLD-209 is a high thermal class polyurethane wire enamel. It has good thermal resistance on heat shock and cut through temperature. It can be quickly soldered at 375 C. It has excellent performance on pinhole resistance after elongation. It can be supplied in red, yellow or green colors. It is suitable for felt or dies and can be used to produce 0.03 mm to 1.20 mm different diameter wires
POLYURETHANE WIRE ENAMEL (Class-180)
SIMSOLD-209 is a high thermal class polyurethane wire enamel. It has good thermal resistance on heat shock and cut through temperature. It can be quickly soldered at 375 C. It has excellent performance on pinhole resistance after elongation. It can be supplied in red, yellow or green colors. It is suitable for felt or dies and can be used to produce 0.03 mm to 1.20 mm different diameter wires
Thermal Class-130
POLYURETHANE WIRE ENAMEL (Class-130)

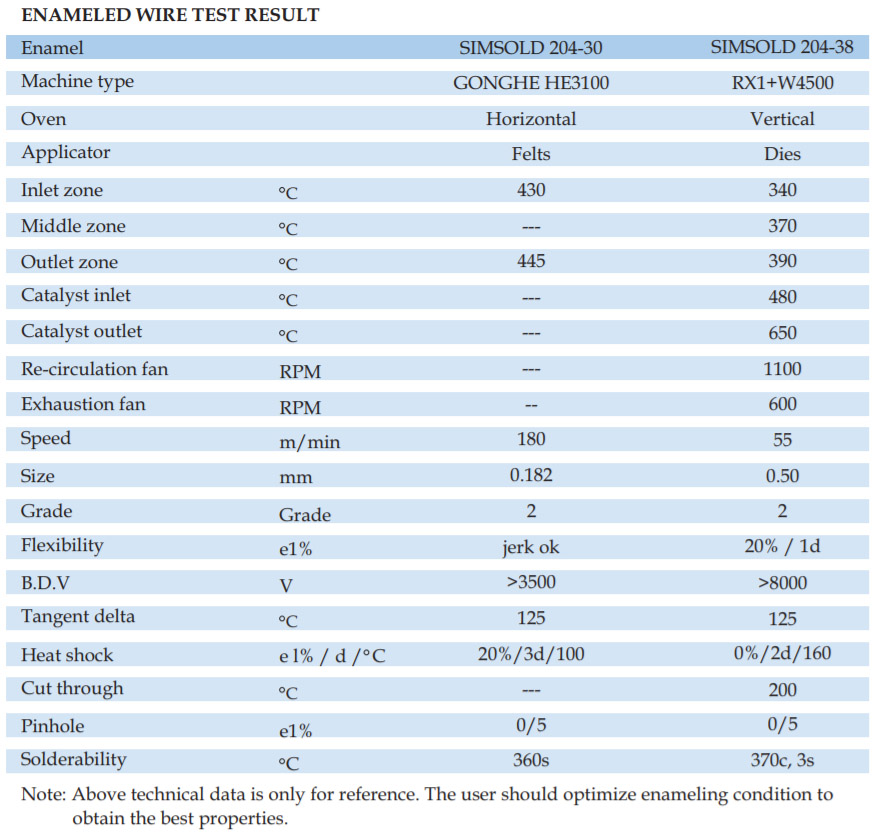

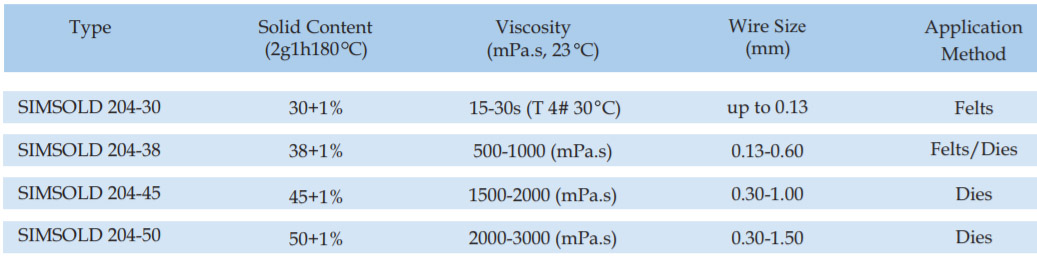

Class 130 polyurethane suitable for 0.05mm to 0.50mm with excellent solderable characteristics and high enameling speed. It may be available in different colors, i.e. red, green and yellow for easy identification and high thermal performance.
POLYURETHANE WIRE ENAMEL (Class-130)
Class 130 polyurethane suitable for 0.05mm to 0.50mm with excellent solderable characteristics and high enameling speed. It may be available in different colors, i.e. red, green and yellow for easy identification and high thermal performance.
